Tascam ML-4D/OUT-E Convertisseur Dante/Analogique 4 ch EUROBLOCK

hardware features

• 4x balanced line outputs

Two product variants:

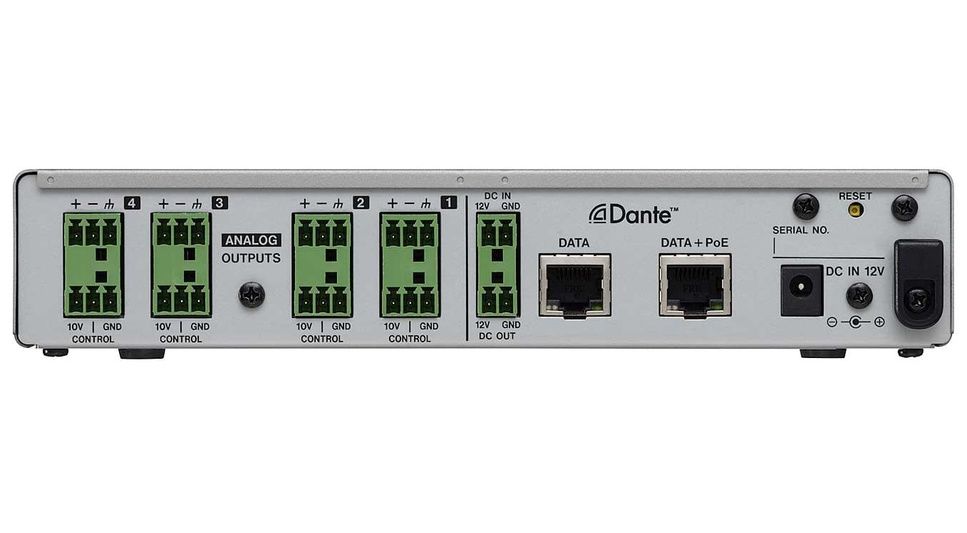

• ML-4D/OUT-E: with Euroblock connectors for fixed installation
• ML-4D/OUT-X (not included): with XLR connectors for touring and other more flexible applications

• Dante interface enables the transmission of audio signals via Ethernet network
• 2x network connections for looping through to other Dante devices
• Flexible Routing Using the Dante Controller Computer Application
• Supports AES67, allowing connection to Ravenna and other compatible audio networking technologies
• Up to 96 kHz sampling rate and 24 bit resolution

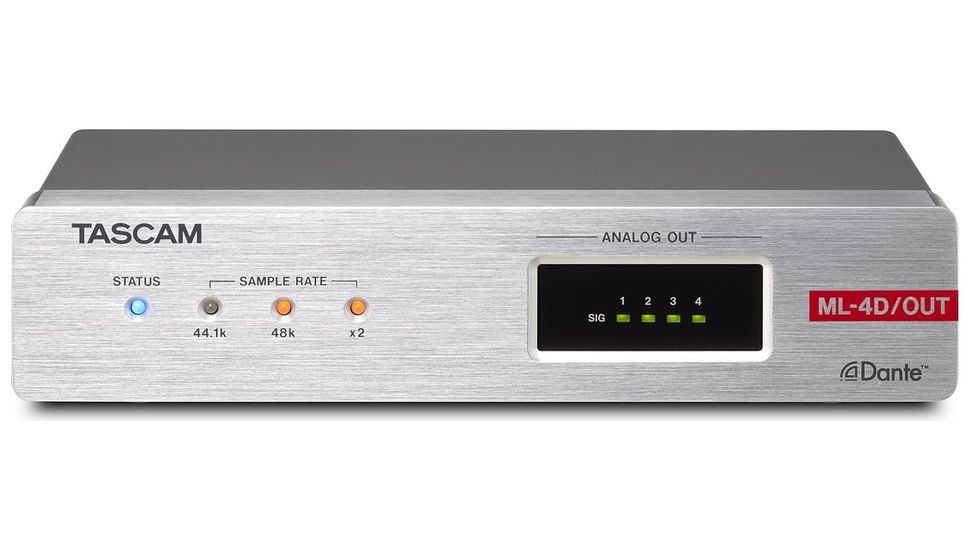

• Displays for operating status and current sampling rate on the front of the device
• Signal displays for the analog output signals
• Output level individually adjustable via GPI (ML-4D/OUT-E)
• Power supply via PoE (Power-over-Ethernet) or optional AC adapter
• 2x devices can be supplied by an AC adapter
• Compact half rack width housing (1U)
• Mounting brackets supplied allow the device to be mounted under a tabletop, for example.

software features

• 4x Dante audio input and output channels
• integrated DSP -mixer

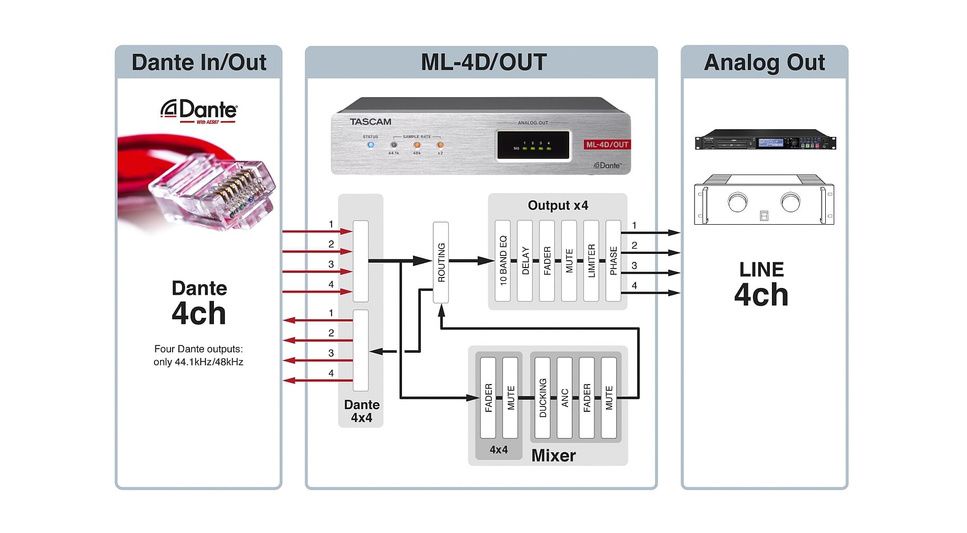

• Mixer functions: matrix mixer, ducking, ambient noise compensation (ANC), routing
• Functions in the output range: 10-band EQ, delay, mute, fader, limiter, polarity
• Up to 50 presets can be stored
• Time-controlled retrieval of presettings (in planning)
• 5x different reference levels for adaptation to different application scenarios in professional studio or broadcast operation
• 2x different control programs available (compatible with Windows, Mac, iOS and Android devices):
• Tascam DCP Connect for system installers provides full access to virtually all settings
• Tascam EZ Connect for End Users is a simple app for the most important settings

Optional accessories from the manufacturer

• AC adapter PS-P1220E (can be used as redundancy for PoE power supply)
• Rack mounting bracket AK-RS1 for installation of two devices next to each other
